V-SLOT Aluminum Profile CNC: Buyer’s Guide for CNC Machines and 3D Printers
Choosing the right V-SLOT aluminum profile CNC setup has a direct impact on machine rigidity, motion quality, assembly speed, and long-term accuracy. Whether you are building a desktop 3D printer, a hobby CNC router, or a larger motion system, profile size and geometry matter more than many first-time builders expect. In this guide, we explain how V-SLOT profiles work, how the common 2020, 2040, 2060, and 2080 sizes differ, how they fit into the OpenBuilds-style ecosystem, and how to match them with V-Wheels, brackets, and T-NUT fasteners for a reliable build. AluVeno supplies custom-cut aluminum profiles and accessories, with shipping across the EU.
V-SLOT profiles are widely used because they combine frame structure and linear guidance in one extrusion. That means fewer parts, simpler assembly, and good modularity for prototyping or upgrading machines later. For makers and small workshops, this makes V-SLOT a practical middle ground between simple framing tube and more expensive industrial linear systems.
What is a V-SLOT aluminum profile CNC system?
A V-SLOT aluminum profile CNC system uses extruded aluminum profiles with a precisely shaped V-groove on the outer edges. That groove is designed to work with polymer or metal-supported V-Wheels, allowing carriages to roll directly on the profile surface. In practical terms, the profile acts both as a structural member and as a track.
This concept is especially useful for:
- 3D printers with lightweight moving gantries
- Desktop CNC routers and laser engravers
- Camera sliders and motion rigs
- Pick-and-place and automation prototypes
Compared with plain T-slot framing, V-SLOT adds rolling guidance without needing separate round rails for every axis. It is not a replacement for heavy industrial linear guides in all cases, but it is an efficient and proven choice for many hobby and light-production machines.
Why builders choose V-SLOT aluminum profile CNC frames
The popularity of V-SLOT comes from a combination of mechanical simplicity and modular design. A single profile can support structure, alignment, and wheel-based motion, which reduces fabrication work and helps maintain squareness during assembly.
Main advantages
- Modularity: profiles can be cut to length and joined with standard brackets and connectors.
- Easy assembly: no welding is needed, and changes can be made later.
- Accessory compatibility: standard T-NUTs, corner brackets, joining plates, and end caps fit common systems.
- Integrated motion path: V-Wheels run directly on the profile.
- Good weight-to-rigidity ratio: aluminum extrusions are light yet structurally efficient.
For machine builders, these advantages translate into shorter build times and easier maintenance. If a machine needs a wider gantry, taller frame, or additional enclosure later, the extrusion-based design is usually simple to modify.

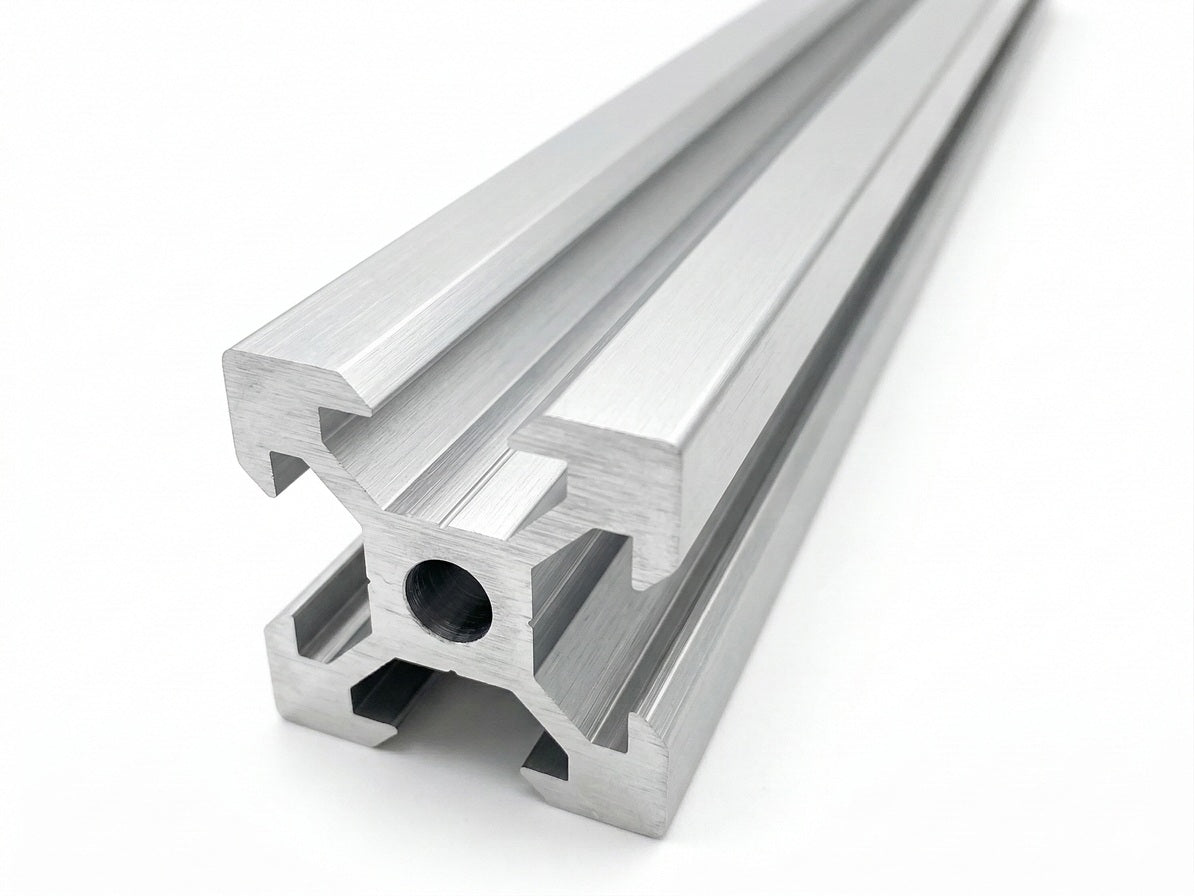

V-SLOT aluminum profile CNC sizes: 2020, 2040, 2060, and 2080
The most common decision is profile size. In general, a larger section gives better resistance to bending and twisting, which is important for longer spans and moving axes. However, larger profiles also add mass and cost, so the best choice depends on machine size and load.
| Profile size | Typical use | Key benefit | Limitation |
|---|---|---|---|
| 2020 | Compact 3D printers, light enclosures, small motion axes | Low weight, compact footprint | Limited stiffness on longer spans |
| 2040 | Printer frames, Y-axes, medium-duty gantries | Balanced rigidity and weight | May be undersized for wide CNC gantries |
| 2060 | CNC frames, long axes, reinforced bases | Higher bending resistance | More mass for moving assemblies |
| 2080 | Large CNC bases, heavy gantries, machine tables | Maximum rigidity among common sizes | Bulkier and heavier than smaller sections |
When to use 2020
2020 is best for compact machines where low mass matters more than maximum stiffness. It is common in smaller 3D printers, electronics mounts, spool holders, and light-duty frames. For unsupported spans, keep expectations realistic: 2020 works well in short lengths but deflects more easily than wider profiles.
When to use 2040
2040 is often the default choice for many builders. It is noticeably stiffer than 2020 while remaining manageable in weight and size. For CoreXY printers, moving beds, or medium-format laser and CNC frames, 2040 offers a practical compromise.
When to use 2060 or 2080
If your build includes a long gantry, a spindle, or significant cutting loads, 2060 or 2080 becomes more appropriate. A CNC router benefits from the extra section height because it reduces flex that can affect cut quality, chatter, and repeatability. 2080 is often reserved for fixed bases and structural members where maximum rigidity is needed.
How V-Wheels and the OpenBuilds-style system fit together
One of the major reasons builders choose V-SLOT is compatibility with the OpenBuilds-style ecosystem. This includes V-Wheel rollers, eccentric spacers, plates, belt hardware, lead screw supports, and mounting accessories designed around standard profile geometry.
V-Wheels ride on the angled faces of the V-SLOT groove. A typical carriage uses a combination of fixed wheels and at least one adjustable wheel with an eccentric spacer. This allows preload to be set so the carriage rolls smoothly without excessive play.
Good wheel setup practice
- Adjust eccentric spacers gradually to remove looseness without crushing wheels.
- Keep profile surfaces clean to reduce wear and rolling resistance.
- Use matched plates and spacers to maintain carriage alignment.
- Check wheel preload again after initial run-in.
For printers and light CNC machines, a well-adjusted V-Wheel system can provide smooth motion with relatively low complexity. The key is proper alignment of the frame and careful wheel tensioning during assembly.
How to choose the right V-SLOT aluminum profile CNC configuration
There is no single best profile for every machine. Selection should be based on axis length, expected load, motion speed, and whether the profile is static or moving.
| Build type | Recommended profile | Notes |
|---|---|---|
| Small 3D printer | 2020 / 2040 | Use 2040 for base or longer vertical members |
| Mid-size CoreXY printer | 2040 | Good stiffness without excessive frame mass |
| Desktop CNC router | 2060 / 2080 | Especially for base and gantry beam |
| Enclosure or support frame | 2020 / 2040 | Choose by span length and panel weight |
A useful rule is simple: use the smallest section that still provides adequate stiffness for the span and load. For moving gantries, reducing unnecessary mass helps acceleration and can improve print or cut quality. For machine bases, heavier and stiffer sections are usually beneficial.
Other selection factors
- Length tolerance: custom cutting helps reduce alignment work during assembly.
- Connection method: brackets are easier for prototypes, while internal connectors provide a cleaner look.
- Future upgrades: larger profiles offer more mounting options for accessories and reinforcement.
- Drive system: belt-driven axes may prioritize low moving mass, while screw-driven axes can tolerate heavier structures.
Common mistakes when buying V-SLOT profiles
Many build problems come from specification errors rather than assembly skill. Avoiding a few common mistakes can save time and rework.
