Aluminum profiles as a modular system — from CNC to structures
A modular system made of aluminum profiles: slots 6, 8, and 10, fastening elements, and cut-to-size service. How to assemble a frame without welding.
Aluminum profiles as a modular system are now among the most practical ways to build a precise, disassemblable, and at the same time sufficiently rigid frame without welding. In practice, they are used both for smaller CNC machines, 3D printers, and automation fixtures, as well as for workbenches, machine enclosures, shelving, or light structures in workshops and industrial settings. The advantage is modularity: a slotted profile, properly selected slot nut, fastening elements, and precise cut-to-size service make it possible to assemble a structure quickly, cleanly, and with the option of later modification.
Unlike welded steel structures, a modular aluminum system is easy to transport, modify, and expand. If a suitable cross-section, slot type, and joining method are selected already at the design stage, very good rigidity can be achieved even without complex manufacturing operations. This is exactly why anodized aluminum profiles are a standard in many technical applications.
Why aluminum profiles as a modular system are so versatile

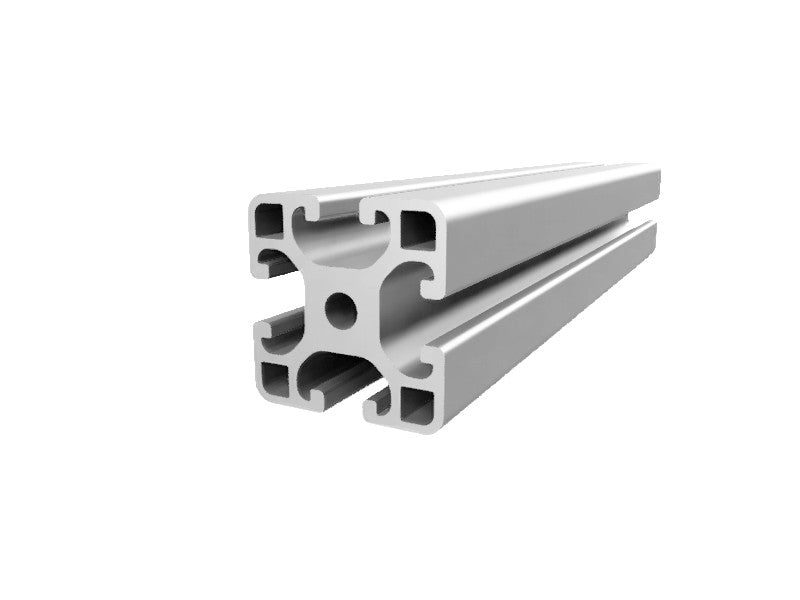

The basic principle is simple: the load-bearing element is an aluminum profile with a longitudinal slot into which slot nuts, connectors, angle brackets, end caps, hinges, or linear components are inserted. The structure is therefore created not by welding, but by bolted joints. This brings several specific advantages:
- fast assembly without thermal impact on the material,
- the possibility of later adjustment or expansion of the frame,
- clean routing of cables, hoses, and accessories in the slots,
- a good rigidity-to-weight ratio,
- precise fit when using profiles cut to size.
In mechanical engineering and automation, you will most often encounter V-SLOT systems, T-SLOT, structural profiles 30x30, 40x40, 45x45, or more robust variants such as C-Beam. Each of them has a slightly different usage logic, and it is worth choosing them not only by size, but according to the actual load and required precision.
How to choose aluminum profiles as a modular system by slot and cross-section
When choosing, two things are key: slot width and profile cross-section. The slot determines compatibility with fastening hardware, while the cross-section affects load capacity, deflection, and the overall stability of the assembly.
Slot 6, 8, and 10 mm
Slot 6 is used mainly in more compact frames and lighter structures. It is typical for smaller fixtures, enclosures, or tabletop equipment. Slot 8 is very versatile and probably the most widespread in practice. It offers wide availability of fastening hardware and is suitable for workbenches, machine frames, and medium-load applications. Slot 10 is intended rather for more robust structures where higher loads or a larger assembly size are expected.
Common profile cross-sections
| Profile cross-section | Typical use | Note |
|---|---|---|
| 2020 | small frames, light modules, 3D printers | low weight, limited rigidity over longer spans |
| 2040 | machine axes, stands, smaller work frames | better rigidity-to-price ratio than 2020 |
| 2060 / 2080 | longer beams, CNC structures, gantries | suitable where torsion and deflection are a concern |
| 30x30 | universal frames, light automation | a frequent choice for smaller industrial assemblies |
| 40x40 | workbenches, machine enclosures, stands | very versatile with readily available accessories |
| 45x45 | more robust machine frames and industrial structures | suitable for higher loads and longer spans |
The practical rule is simple: the longer the free span and the higher the dynamic load, the larger the profile or the more suitable the cross-section orientation should be. A 2040 profile can be significantly stiffer than 2020 when properly oriented, and a 2080 profile is better suited for a beam than for a column if you need resistance to deflection in a specific direction.
V-SLOT, T-SLOT, and C-Beam: when to use each system
V-SLOT
V-SLOT combines a load-bearing profile and guide geometry for V-Wheel rollers. This is why it is popular in hobby and semi-professional CNC machines, lasers, and 3D printers. Its advantage lies in simplicity: a carriage can roll directly along the profile without a separate linear rail. For light and medium-load axes, this is a very practical solution.
T-SLOT and classic structural profiles
T-SLOT is a universal base for frames, workbenches, machine cladding, transport carts, or technological fixtures. If you do not need the profile to function as a travel track at the same time, this is usually the most logical choice. A wide range of connectors, slot nuts, and cover elements is available.
C-Beam
C-Beam is used where it is necessary to combine a profile with higher rigidity and the ability to guide a moving part inside or along the body of the profile. It is often used for CNC axes, sliding mechanisms, and compact linear units. Compared to a standard V-SLOT profile, it offers a more robust geometry, but at the same time requires a more carefully considered design of the entire axis.
Fastening elements: the rigidity of the entire structure depends on the details
When designing a frame, it is often underestimated that the final strength is determined not only by the profile itself, but also by the joining method. A poorly designed joint can compromise even a robust cross-section. Conversely, the right combination of angle brackets, internal connectors, and slot nuts significantly improves the behavior of the entire assembly.
- Slot nuts: a basic element for mounting accessories and joints, available in various sizes for slot 6, 8, and 10.
- Angle brackets: a quick and clear solution for right-angle joints, suitable for table frames, enclosures, and lighter machines.
- Internal connectors: a more aesthetic and often stiffer option if you do not want the fastening elements to protrude outward.
- End joints and anchoring elements: used where assembly repeatability and higher joint loads are important.
In dynamically loaded structures, for example in CNC or linear axes, it is worth paying attention not only to proper tightening, but also to the well-thought-out placement of joints. A short rigid node is usually better than a long profile with one weak connection. The quality of the contact surfaces after cutting is also important.
Where a modular system made of aluminum profiles makes the most sense
CNC and 3D printing
For smaller CNC machines and printers, V-SLOT profiles 2020, 2040, 2060, and 2080 are especially suitable. Smaller cross-sections are sufficient for the frame and secondary parts, while larger ones make sense for gantries, bases, and longitudinal beams. If the goal is higher precision, it is often suitable to combine a modular frame with HGH or HGW linear guides.
Workbenches and workshop frames
Here, 30x30, 40x40, and 45x45 profiles often prove effective. For a standard workbench, 40x40 is a very reasonable compromise between weight and rigidity. If higher loads, vibrations, or longer unsupported spans are expected on the table, it is better to move to 45x45 or use transverse bracing.
Machine enclosures, partitions, and light technical structures
Here, a major advantage is the possibility of easily fitting infill panels, polycarbonate, sheet metal, or mesh panels directly into the slots. The structure can be supplemented with hinges, handles, locks, and casters, without the need to weld or drill anything into the finished frame.
Cut-to-size service and assembly precision
Precise cut-to-size service is essential for modular profiles. Even quality fastening hardware cannot fully compensate for an inaccurate cut or an uneven contact surface. If the frame is to be square, free from stress, and easy to adjust, the precise length of every part is fundamental.
It is an advantage when an anodized aluminum profile can be ordered already prepared for assembly in the required length. This saves time, production waste, and the risk of errors during in-house cutting. This is important both for one-off projects and for repeat corporate orders. Shipping finished parts throughout the EU may also be available as standard, which makes it easier to carry out projects outside the domestic market.
| Project type | Recommended profile | Recommended slot |
|---|---|---|
| small 3D printer | 2020 / 2040 V-SLOT | 6 or 8 |
| smaller CNC router | 2040 / 2060 / 2080 | 8 |
| workbench | 40x40 | 8 |
| robust technological frame | 45x45 | 10 |
What to watch out for when designing a frame without welding
The most common mistake is an undersized profile over a long span. Another mistake is trying to save on joints or diagonal bracing. A frame that looks sufficiently robust in a drawing may in reality be weak in torsion or start vibrating when the axes move. For more precise equipment, it is therefore advisable to consider:
- the direction of the main load and profile orientation,
- the length of unsupported spans,
- the number and type of corner joints,
- the possibility of later adjustment,
- combining modular profiles with linear guides if higher precision is required.
A well-designed modular system is not a temporary solution. On the contrary, it can be a fully fledged technical solution with excellent serviceability, easy modernization, and clean assembly.
Summary
Aluminum profiles as a modular system represent a well-thought-out way to build frames, axes, and technical structures without welding. The key to a good result is the correct choice of cross-section, slot, fastening hardware, and precise cut-to-size service. Compact V-SLOT is suitable for light applications, classic T-SLOT and structural profiles for universal frames, and more robust C-Beam or combinations with linear guides for stiffer linear assemblies.
If you are looking for a suitable aluminum profile, slot nuts, fastening elements, or cut-to-size service for a specific project, please write to shop@bsv-slot.pl. We will help you choose a solution that is technically correct and easy to assemble.
