V-SLOT Aluminum Profile CNC Buyer's Guide for CNC Machines and 3D Printers
Choosing the right V-SLOT aluminum profile CNC setup is one of the most important decisions when building or upgrading a CNC router, laser engraver, motion platform, or 3D printer. Profile size affects frame stiffness, axis accuracy, wheel alignment, accessory compatibility, and the total weight of the machine. In practice, builders usually compare 2020, 2040, 2060, and 2080 sections, then match them with V-Wheel rollers, T-NUT fasteners, corner brackets, and plates compatible with the OpenBuilds style system. This guide explains how each size works, where it fits best, and what to check before ordering custom-cut profiles from AluVeno.
At AluVeno, V-SLOT and T-SLOT aluminum profiles are supplied cut to custom length for machine builders who want a cleaner assembly process and less workshop waste. That matters whether you are making a compact desktop printer or a larger CNC frame with long-span axes. The same principles apply in both cases: the structure must resist deflection, keep the wheels aligned, and provide enough slot space for fasteners and accessories.
What is a V-SLOT aluminum profile CNC system?
A V-SLOT profile is an aluminum extrusion with standard linear slots and a 90-degree V-shaped running surface designed for wheel-based motion. In a V-SLOT aluminum profile CNC build, the profile can serve two functions at once: it is both the machine frame and the track for V-Wheel rollers. This reduces part count compared with separate linear rails and makes the system attractive for hobby, prototype, and light production machines.
The most common ecosystem is based on OpenBuilds-compatible dimensions and accessories. That means builders can combine profiles, gantry plates, eccentric spacers, wheel kits, T-NUTs, and brackets from a widely recognized mechanical standard. The main strengths of this approach are modularity, simple assembly, and straightforward future upgrades. The main limitation is that wheel-on-profile motion is not intended to replace heavy industrial rail systems in very high-load or high-speed applications.
V-SLOT aluminum profile CNC sizes: 2020, 2040, 2060, 2080

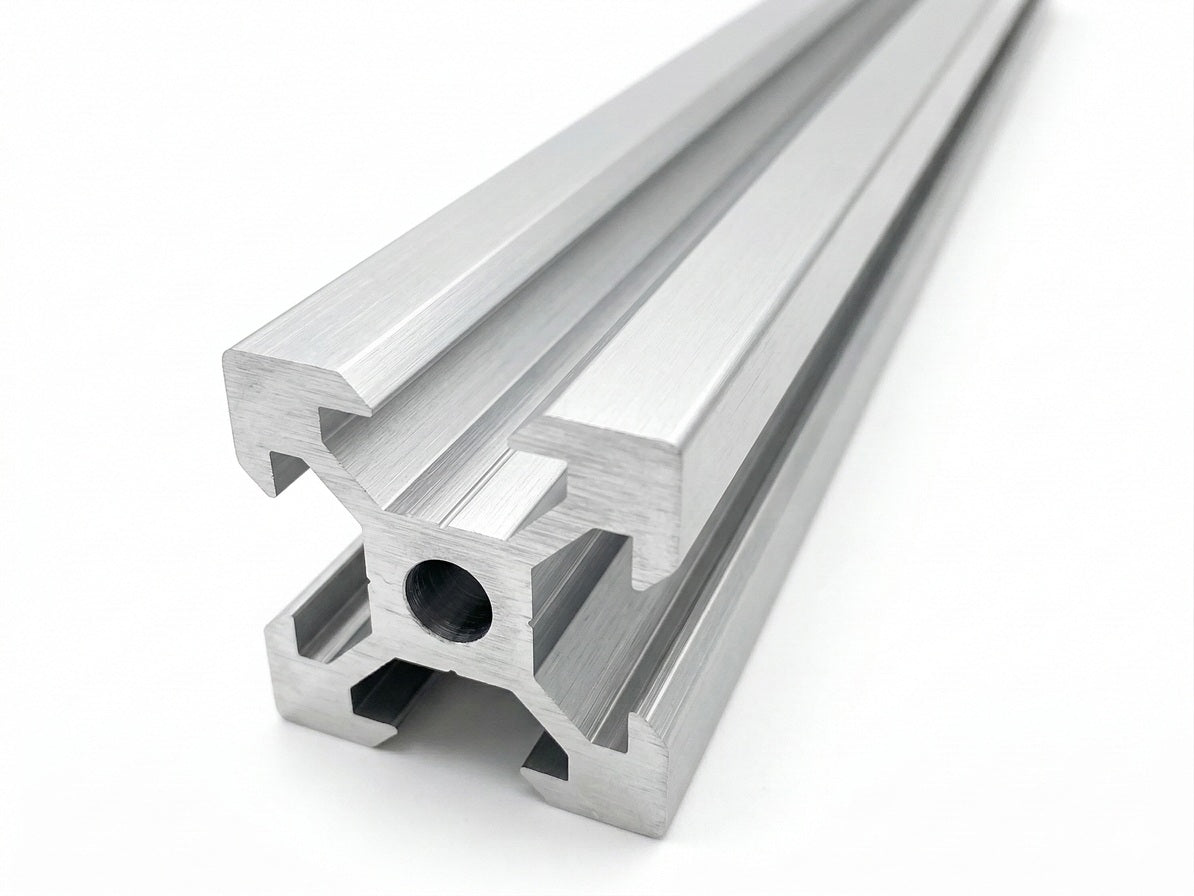

The numbers describe the cross-section in millimeters. A 2020 profile is 20 × 20 mm, a 2040 is 20 × 40 mm, a 2060 is 20 × 60 mm, and a 2080 is 20 × 80 mm. All can be used in machine structures, but they are not interchangeable in performance. The larger the section, the greater the stiffness against bending, especially when the longer dimension is oriented to resist load.
| Profile size | Typical use | Main advantage | Watch out for |
|---|---|---|---|
| 2020 | Small 3D printers, braces, light enclosures | Lightweight and compact | Limited stiffness on longer spans |
| 2040 | Printer frames, light gantries, compact CNC axes | Good stiffness-to-weight ratio | Can still flex under aggressive CNC loads |
| 2060 | Gantry beams, stronger printer bases, medium CNC frames | Better resistance to bending | Heavier than needed for some desktop builds |
| 2080 | Large CNC frames, long-span axes, rigid bases | Highest stiffness in this group | Higher mass and larger machine footprint |
When to use 2020
2020 is best for small-format printers, secondary frame members, electronics mounts, spool holders, and light-duty structures. It works well when the unsupported length is short and the moving mass is low. For example, it can be suitable for compact Cartesian or CoreXY printer frames with careful bracing. For a CNC machine, 2020 is usually too light for primary load-bearing gantries unless the working area is very small and cutting forces are minimal.
When to use 2040
2040 is often the practical entry point for structural machine builds. The doubled width gives noticeably better rigidity than 2020 while keeping assembly simple. It is commonly used for printer verticals, machine bases, and light gantry members. If a profile is loaded mainly in one direction, orientation matters: placing the 40 mm dimension in the direction that resists bending improves performance.
When to use 2060
2060 is a strong choice for builders who want more stiffness without jumping immediately to a much heavier section. It is especially useful for X-axis gantries on larger 3D printers, Y-axis beams on moving-bed machines, and medium-size CNC frames where deflection must be kept lower under tool load. If you are unsure whether 2040 is enough, 2060 is often the safer option.
When to use 2080
2080 is typically selected for longer spans, heavier spindles, larger beds, and machine bases where rigidity has priority over low weight. On a CNC router, a 2080 beam can make sense for the main gantry or base frame, especially as travel increases. On a 3D printer, it may be excessive for compact builds but useful in large-format designs where maintaining geometry over time is critical.
How to choose the right V-SLOT aluminum profile CNC frame
The correct size depends on four technical factors: span length, moving load, process force, and acceptable deflection. A 3D printer applies lower cutting force than a CNC router, but speed and vibration still matter. A laser machine has very low process force, so profile selection may be driven more by acceleration and frame stability than by spindle load.
| Application | Recommended starting point | Notes |
|---|---|---|
| Small desktop 3D printer | 2020 or 2040 | Use bracing and keep spans short |
| Large-format 3D printer | 2040 or 2060 | Higher stiffness improves print consistency |
| Light-duty CNC router | 2040 or 2060 | Check gantry deflection carefully |
| Medium or larger CNC router | 2060 or 2080 | Prioritize rigidity on long axes |
| Laser or plotting machine | 2020 or 2040 | Lower process forces allow lighter sections |
A useful rule is simple: if the machine gets larger, faster, or heavier, move up one profile size before problems appear. Many builders first notice undersized profiles as ringing in prints, chatter in cuts, or inconsistent wheel preload. Those symptoms are often structural, not only mechanical or firmware-related.
V-Wheel compatibility and OpenBuilds-style accessories
One reason the V-SLOT aluminum profile CNC format remains popular is its compatibility with V-Wheel motion systems. A V-Wheel runs on the angled outer edges of the profile slot. With the correct plate geometry and eccentric spacers, you can preload the wheels to remove play while maintaining smooth travel.
When selecting wheels and hardware, check the following:
- Wheel type: solid or delrin-style wheels are common for quiet, low-maintenance motion.
- Bearings and spacers: wheel alignment depends on correct spacing, not only wheel quality.
- Eccentric spacers: necessary for adjustable preload on many gantry assemblies.
- T-NUT fasteners: essential for attaching plates, brackets, drag chains, and printed parts to the slot system.
- Corner brackets and joining plates: improve frame squareness and repeatability during assembly.
Profiles compatible with the OpenBuilds-style standard allow easier sourcing of matching accessories. This is important when a project evolves over time. Many builders start with a simple machine, then later add belt tensioners, limit switch mounts, cable management, spoilboard supports, or enclosure panels. A modular slot system makes those changes much easier than drilling and welding a fixed frame.
Cut to size: why custom lengths matter
Ordering profiles cut to length saves time and reduces dimensional errors during the build. Accurate matching lengths help maintain frame squareness, especially in printer cubes and CNC bases where opposite sides must align precisely. It also reduces the need for additional trimming tools and avoids rough cut ends that can affect bracket fitment.
For machine builders, it is worth planning the full bill of materials before ordering. Include profile lengths, number of end taps if required, bracket count, T-NUT quantity, wheel kits, and spare fasteners. A complete order reduces delays and makes assembly more predictable. For customers across Europe, AluVeno provides custom-cut profile supply with EU shipping, which is useful when sourcing all structural components from one place.
Common mistakes when buying V-SLOT profiles
The most common mistake is selecting profile size by appearance rather than by span and load. A frame may look robust in photos but still flex under motion. Another frequent issue is ignoring profile orientation. A 2040 beam performs differently depending on whether the 40 mm side is placed vertically or horizontally relative to the main bending direction.
Other avoidable mistakes include:
