135° external corner bracket for aluminium profiles, 80 series, silver
135° external corner bracket for aluminium profiles, 80 series, silver
135° external corner bracket for 80 series aluminum profiles - silver

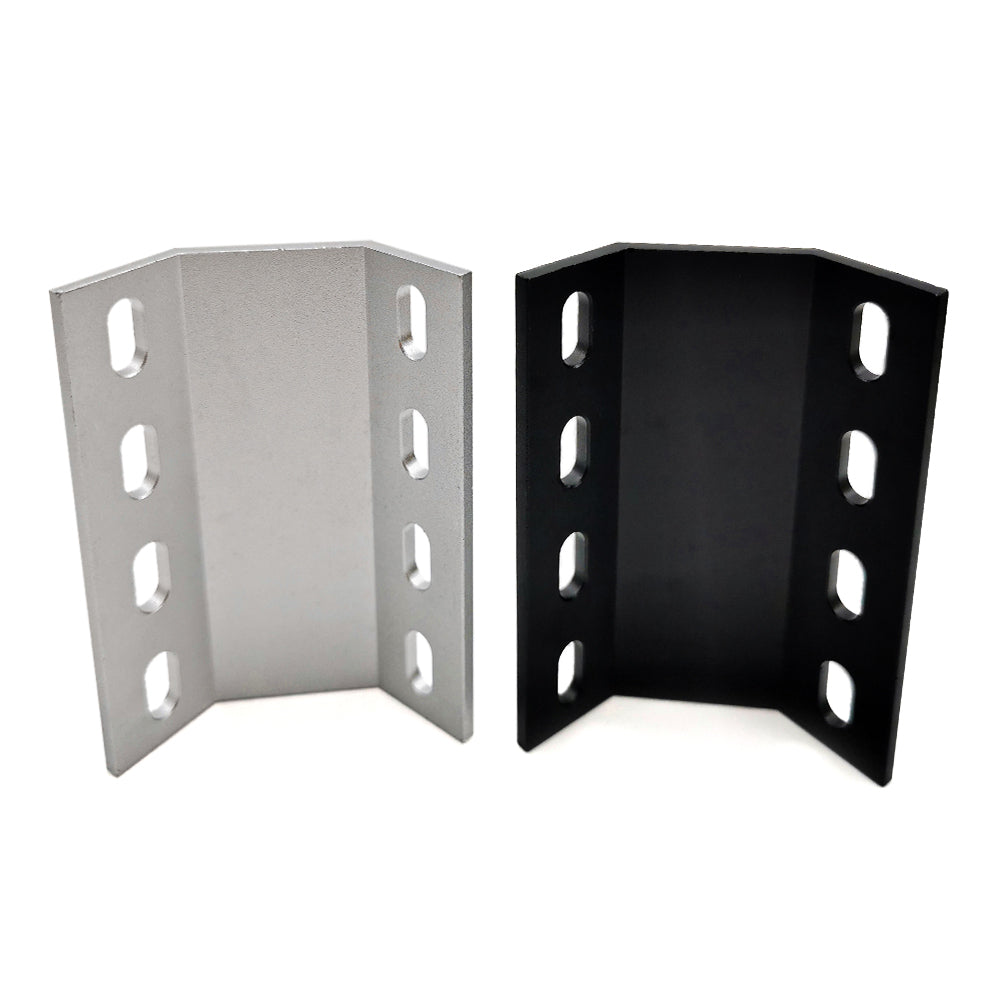

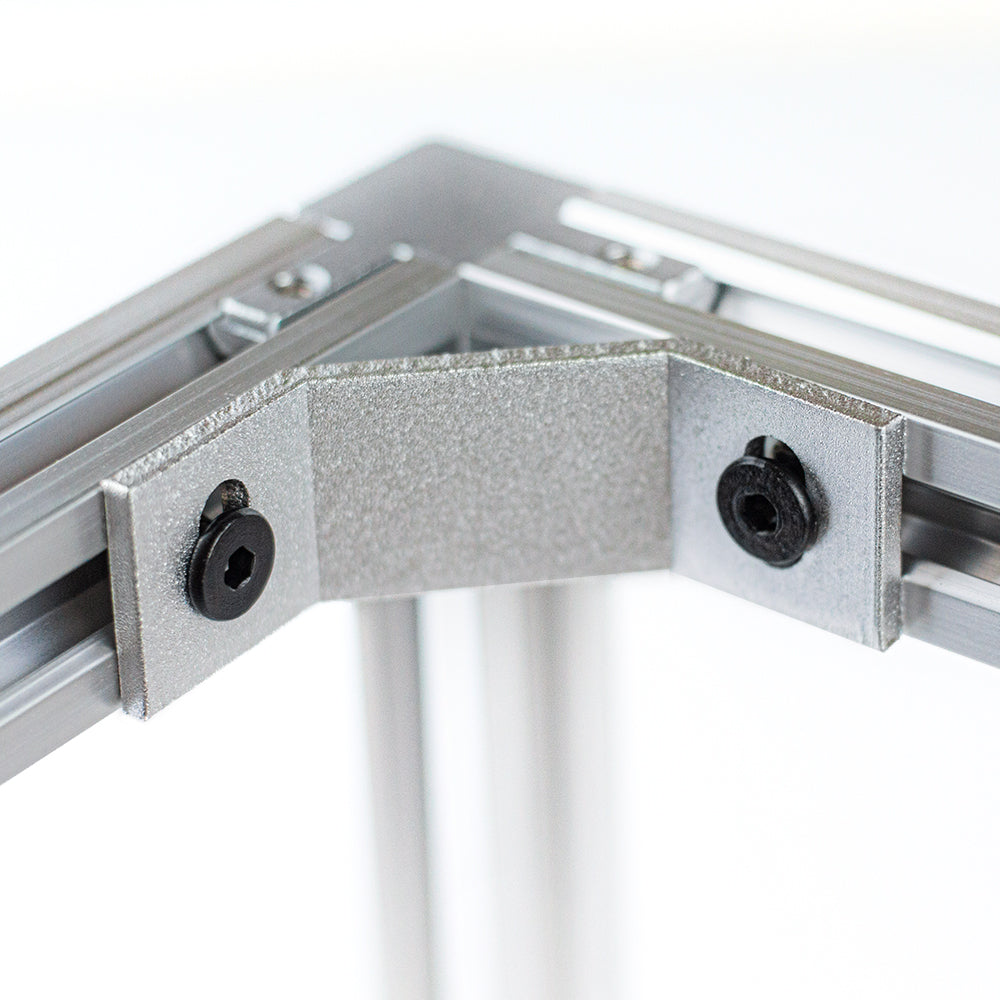

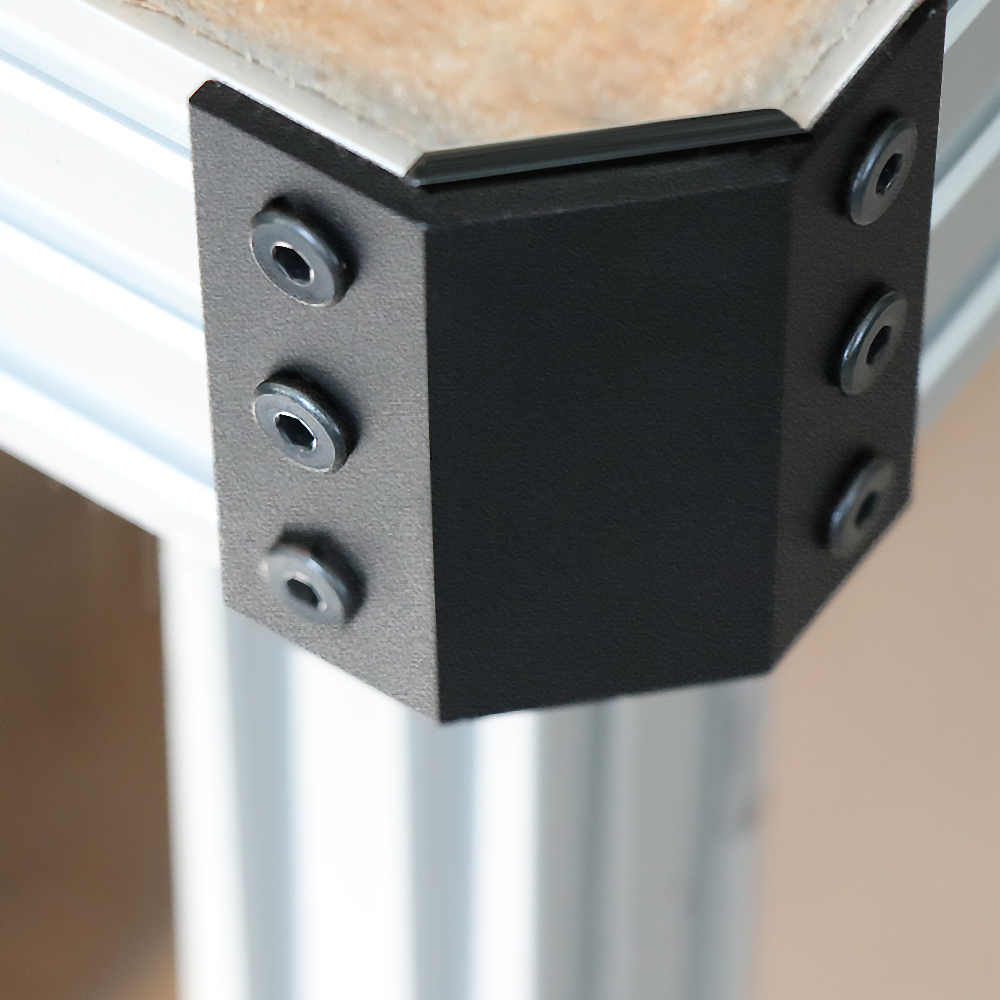

The 135° external corner bracket is a solid mounting component designed for joining aluminum profiles at a 135° angle. It allows for durable and aesthetic connections in structures where the standard 90° angle is not applicable.
The component is made of high-quality 3 mm thick steel, which ensures high rigidity and resistance to deformation even under heavy loads. Elongated mounting holes facilitate position adjustment during assembly, allowing precise fitting of structural elements.

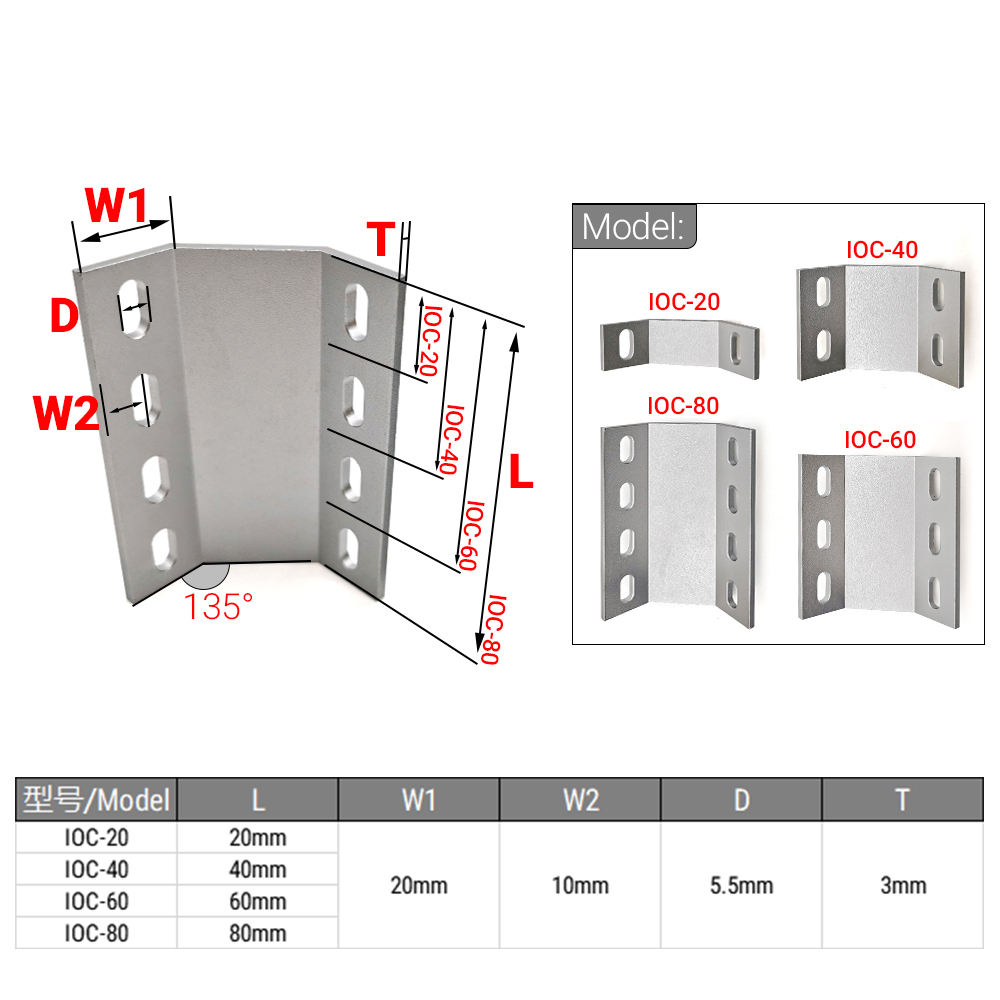

The bracket is available in four variants (20, 40, 60 and 80 mm), so it can be matched to aluminum profiles with different cross-sections.
Application:
The bracket is used in the construction of:
- aluminum profile structures requiring a 135° connection,
- frames and supports,
- CNC machines,
- industrial guards and enclosures,
- workstations,
- shelving and warehouse structures,
- architectural and decorative structures.

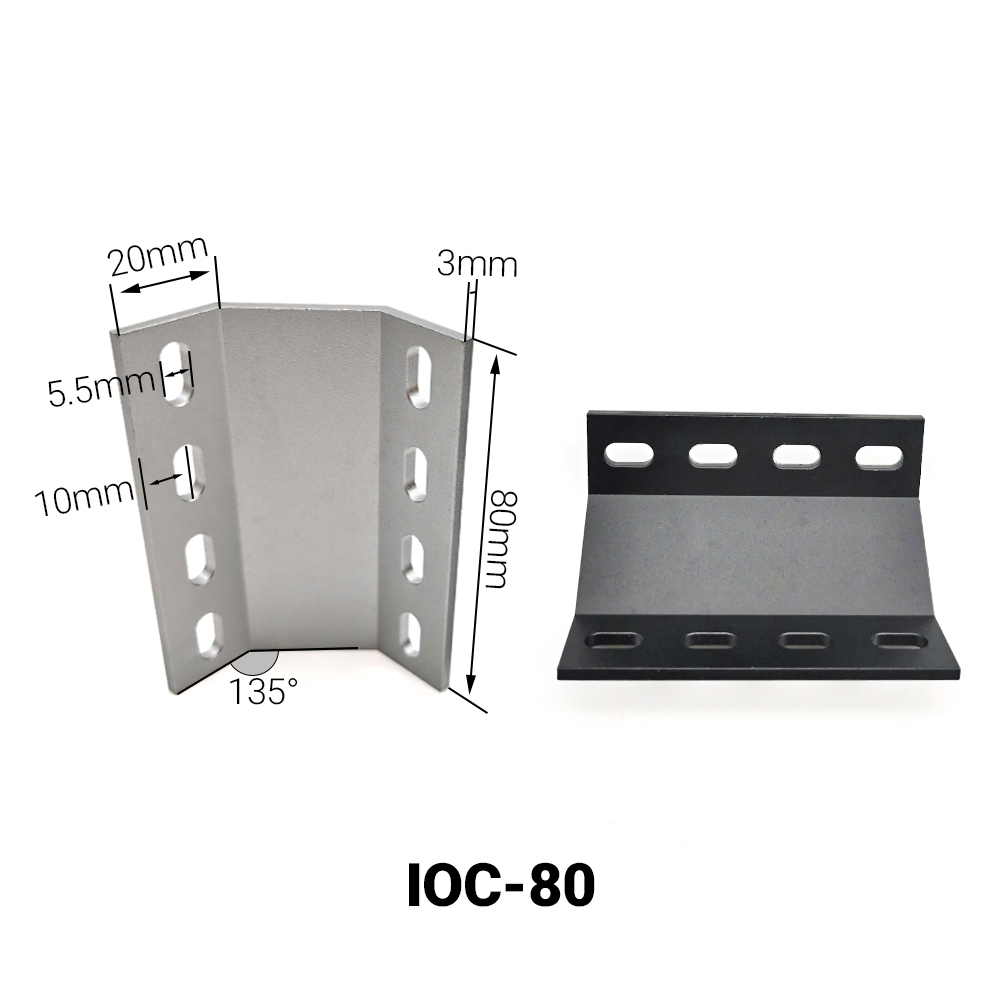

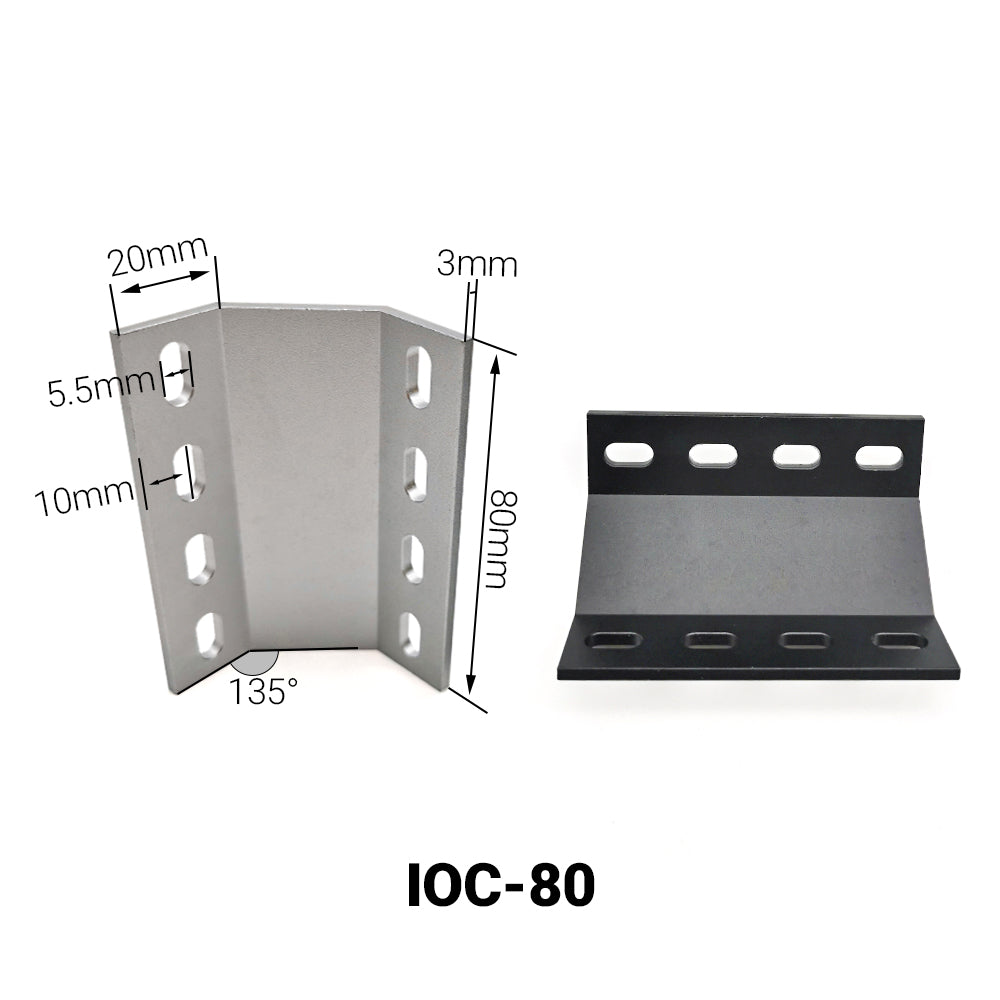

Technical parameters:
- Intended for: 80 mm series aluminum profiles
- Material: steel
- Color: silver
- Connection angle: 135°
- Material thickness: 3 mm
- Mounting hole diameter: 5.5 mm
- Wing width: 20 mm
- Width of elongated holes: 10 mm
- Dimensions: 80 × 20 × 20 mm (H × W × L)
